Description

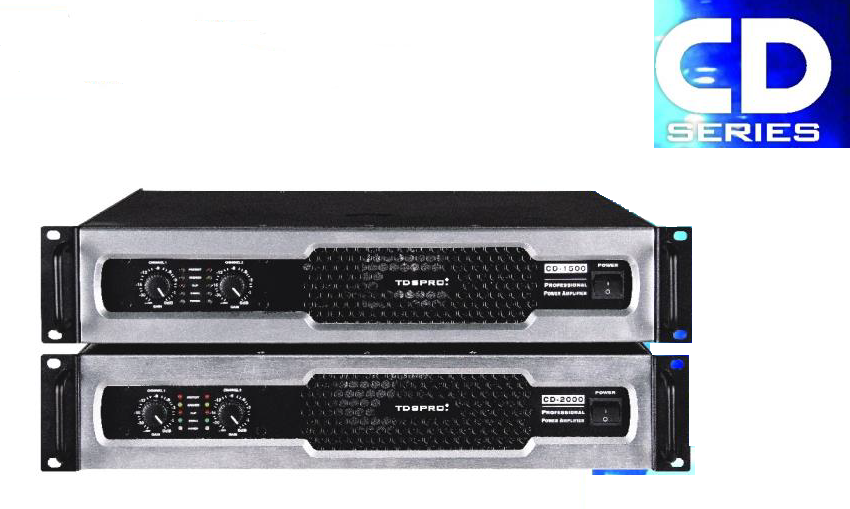

CD Series Specs:
| MODEL | CD3000 | CD2000 | CD1500 |
|---|---|---|---|
| 8Ω Stereo | 800Wx2 | 600Wx2 | 450Wx2 |
| 4Ω Stereo | 1300Wx2 | 960Wx2 | 700Wx2 |
| 2Ω Stereo | 1800Wx2 | 1400Wx2 | 1000Wx2 |
| 8Ω Bridge | 2600W | 1920W | 1400W |
| 4Ω Bridge | 3600W | 2800W | 2000W |
| Frequency Response | 20Hz~20KHz+0/-0.3dB | ||
| THD+N | <0.05%@4Ω 1KHz | ||
| S/N Rate | ≥110dB | ≥110dB | ≥105dB |
| Slew Rate | 60V/us | 60V/us | 60V/us |
| Damping Factor | ≥800@8Ω | ≥800@8Ω | ≥800@8Ω |
| Crosstalk | ≥800@8Ω 1KHz | ||
| Input Impedance | 20KHz(Balance)/10KΩ(Unbalance) | ||
| Input Impedance | 0.775V 1.0V 1.5V | 0.775V 1.0V 1.5V | 0.775V 1.0V 1.5V |
| Protect | DC/SHORCIRCUIT/OVER HEAT/SOFTSTART | ||
| Helght | 2U | 2U | 2U |
| Packing Dimensions | 89x483x472mm | 89x483x472mm | 89x483x472mm |
| Gross Weight | 25Kg | 21Kg | 19Kg |
