Description
Features:
- Durable compression driver with 75mm voice coil.
- HF voice coil from SUZUKI.
- 15inch woofer with original 7DF paper cone.
- Cabinet finish color optional.
Applications:
- Theatrical sound reinforcement.
- Front fill and delays in large-scale reinforcement.
- Portable and installed audio-visual systems.
- Stage monitoring side fill.
- Concert halls, Ballrooms.
Specifications:
| System Type | 15inch, 2-way speaker |
| Frequency Response | 55Hz -- 20 KHz ± 3dB |
| Sensitivity (1W/1M) | 100dB. |
| Impedance | 8 ohms |
| Rated Power | 500W (RMS), 1000W (PEAK). |
| Dispersion | 90° (H) X 40° (V) |
| Drivers | LF driver 15' ' transducer (75mm) voice coil |
| HF driver 1.5' ' exit (75mm) voice coil. | |
| Maximum SPL | 133dB |
| Connectors | 2 x Neutrik NL4. |

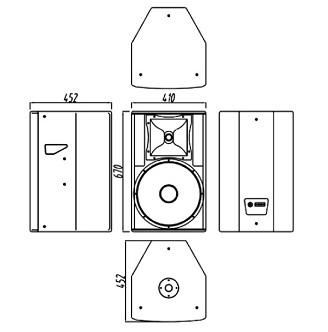

| Dimensions | (W) 410mm x (H) 670mm x (D) 452mm |
| Weight (net) | 30kg |
