Description
Features:
- 44mm voice coil CELESTION compression driver.
- 12inch woofer with 75mm voice coil and 7DF paper cone
- Birch Plywood cabinet with smooth craft paint finish.
- Exactly designed crossover
Applications:
- Theatrical sound reinforcement.
- Portable and installed audio-visual systems.
- Concert Halls, night clubs and houses of worship.
- Stage monitoring side fill.
- Front and balcony fill.
Specifications:
| System Type | 2-way 12'' full range |
| Frequency Response | 65Hz-20KHz ±3 dB |
| Dispersion (H x V) | 90° x 40° |
| Handling Power | 400W(RMS)/800(PEAK) |
| Sensitivity | 99dB |
| MAX.SPL | 132dB |
| Impedance | 8 ohms |
| Suspension | Yes |

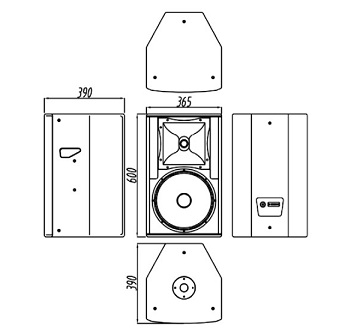

| Dimensions | W365 x H600 x D390 (mm) |
| Weight (net) | 23kg |
